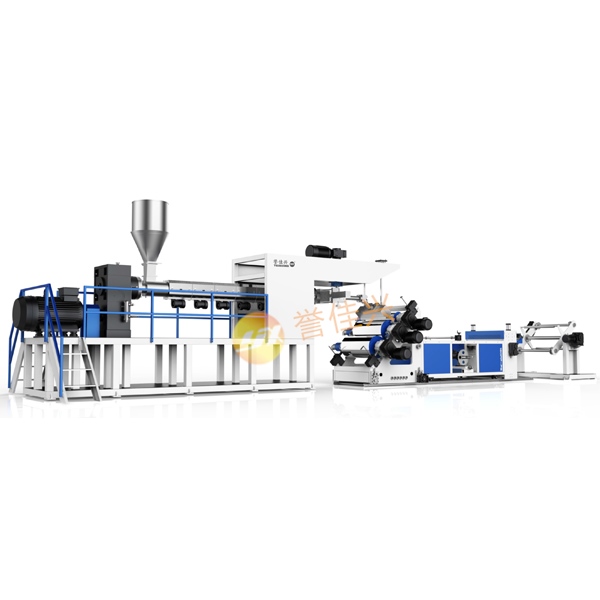

JNW130-1000 PP PS Single Screw Plastic Sheet Extruder

JNW130-1000 PP PS Single Screw Plastic Sheet Extruder

JNW130-1000 PP PS Single Screw Plastic Sheet Extruder is mainly used for packaging of blister, thermoforming industry fields. PP/PS/PE sheet thermoforming by second-process to make various product, mainly used in food, medicine, medical equipment. We are specifically do the data optimization for speed ratio of volume and screw, substantially increased extruding output and material melting performance.

  • Processing Type :

    JNW130-1000 PP PS Single Screw Plastic Sheet Extruder
  • Plastic Type :

    PP/PS/PE
  • Production Speed :

    550~700 kg/h
  • Brand Name :

    Yujiaxing
  • Voltage :

    380V/50Hz, 3P+N+E
  • Dimension :

    16000*4500*3700 mm
  • Power :

    ≈ 156 Kw
JNW130-1000 PP PS Single Screw Plastic Sheet Extruder

JNW130-1000 PP PS Single Screw Plastic Sheet Extruder is mainly used for packaging of blister, thermoforming industry fields. PP/PS/PE sheet thermoforming by second-process to make various product, mainly used in food, medicine, medical equipment. The sheet thickness is 0.3-2mm, sheet width 390-820mm, output 550-700kg/h. We are specifically do the data optimization for speed ratio of volume and screw, substantially increased extruding output and material melting performance.

FEATURES AT A GLANCE
1. Keep good material's mixing effect and plastify quality, can maximum improve the finished product quality, reduce the processing defect.
2. Modular design, compact structure, easy operation, simple maintenance.
3. Can realize online crushing rim, automatic wrapping roll and winding, improve product quality, reduce cost.
4. With advanced electronic software system, parameter setting, data calculation, alarming automatic function, greatly improved operator safety and labor strength.

PRODUCT PARAMETER
NO. Description Specification
1 Screw Diameter ∅130 mm
2 Suitable Material PP, PS, PE
3 Sheet Layer A
4 Tolerance Thickness ±0.01mm
5 Sheet Thickness 0.3-2.0mm
6 Sheet Width 390-820mm
7 Screw Speed ≤100rpm
8 Output 550-700kg/h
9 Power Supply 380V/50HZ, 3P+N+E
10 Main Motor 175Kw
11 Max Total Power ≤315Kw
12 Average Power ≈156Kw
13 PLC INOVANCE
14 Touch Screen INOVANCE 15"
15 Machine Weight ≈22 Ton
16 Dimension LxWxH 16000x4500x3700 mm

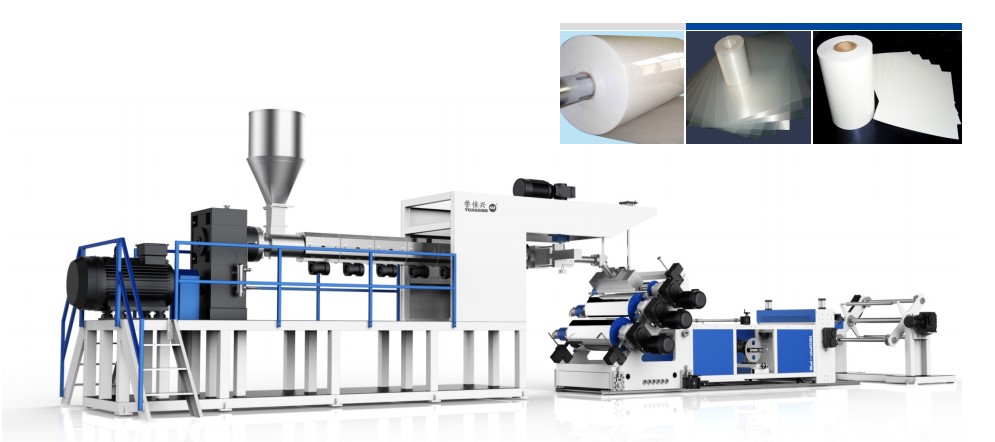

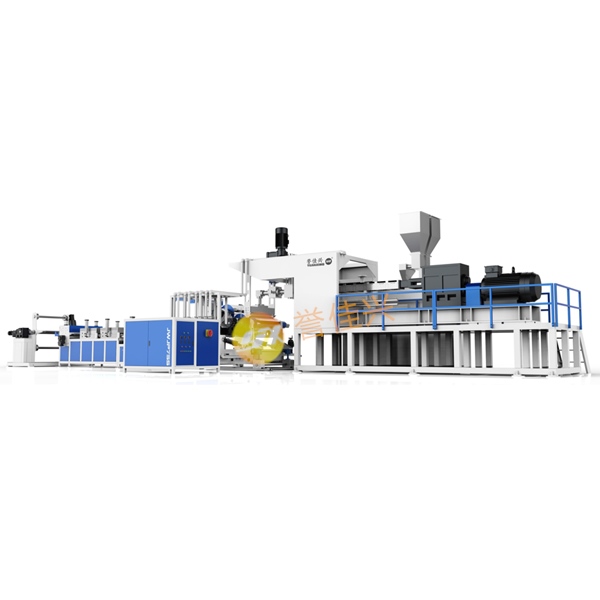

PRODUCT PICTURES:
