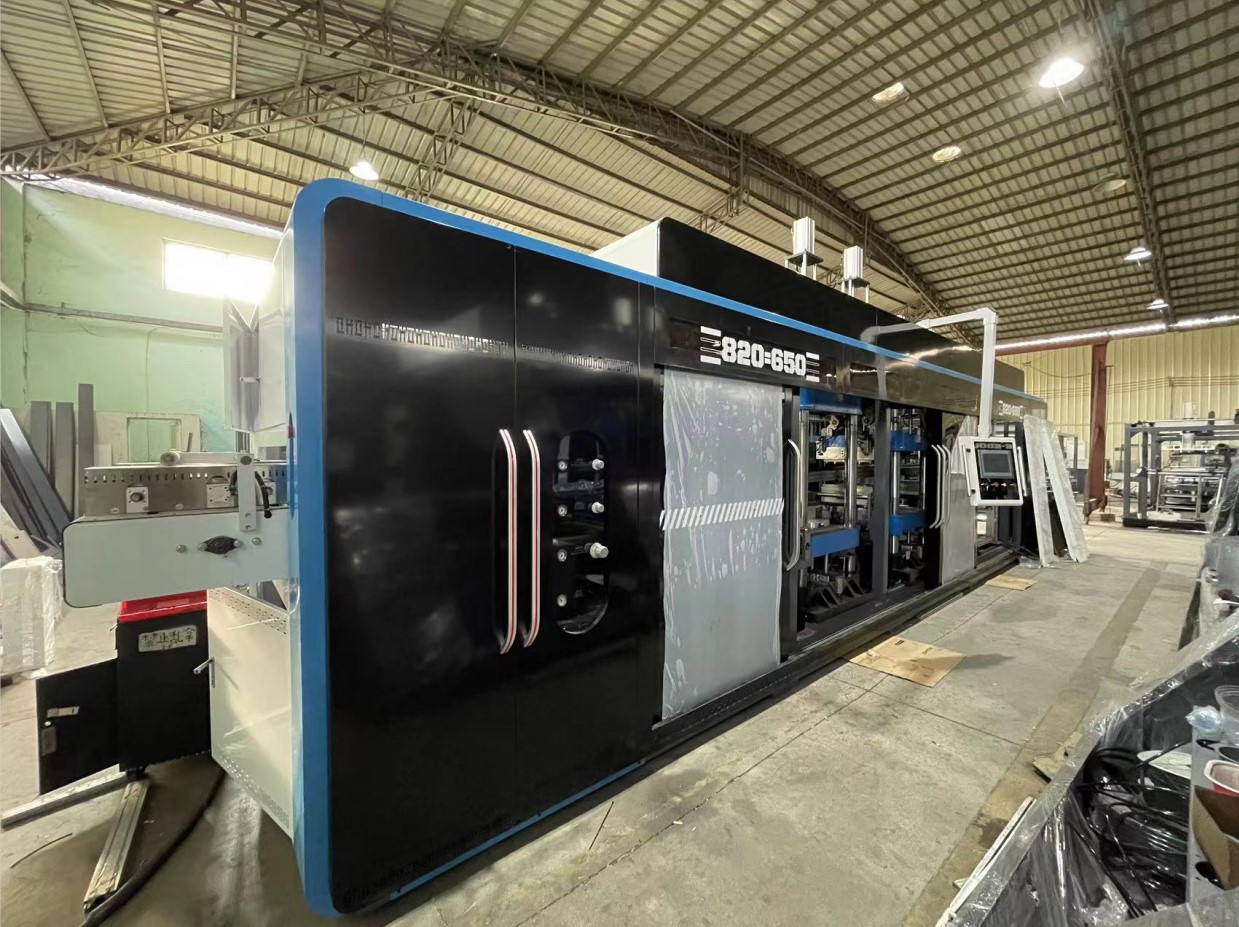

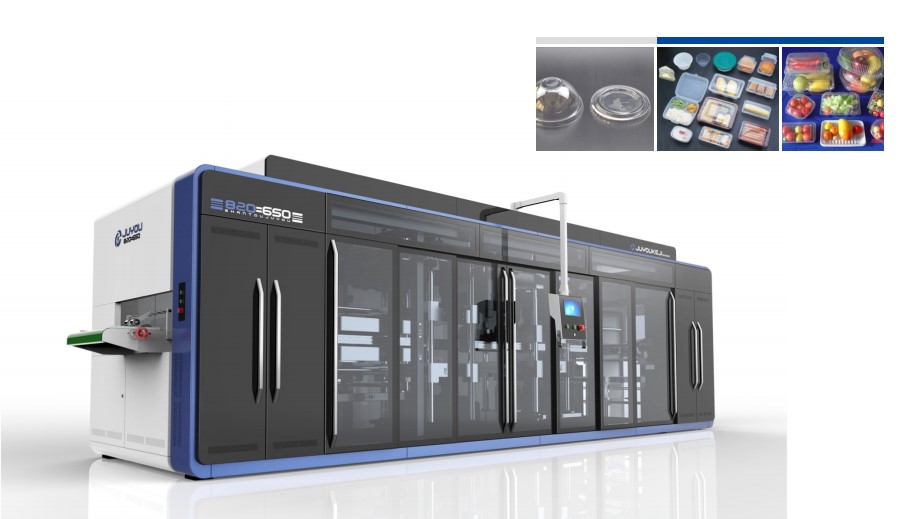

JD820-650 Pressure And Vacuum Multistation Four Stations Plastic Thermoforming Machine

JD820-650 Pressure And Vacuum Multistation Four Stations Plastic Thermoforming Machine

JD820-650 Pressure And Vacuum Multistation Four Stations Plastic Thermoforming Machine is suitable for producing plastic fruit containers. It has four stations, forming, punching, cutting and stacking. Its forming area is 820X650mm, forming depth 140mm, speed 60cycle/min. It is mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with vacuum & positive pressure forming to become different kinds of containers.

  • Processing Type :

    JD820-650 Pressure And Vacuum Multistation Four Stations Plastic Thermoforming Machine
  • Plastic Type :

    PET/PP/PS/PVC/PLA
  • Production Speed :

    ≤60 Cycle/Min
  • Brand Name :

    Yujiaxing
  • Voltage :

    3phase 4wire 380V50Hz
  • Dimension :

    14040 x 2400 x 3100
  • Power :

    60-80KW/H
JD820-650 Pressure And Vacuum Multistation Four Stations Plastic Thermoforming Machine

JD820-650 Pressure And Vacuum Multistation 4 Stations Plastic Thermoforming Machine is suitable for producing plastic fruit containers. It has four stations, forming, punching, cutting and stacking. Its forming area is 820X650mm, forming depth 140mm, speed 60cycle/min. It is mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with vacuum & positive pressure forming to become different kinds of containers.

1. Mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Color touch screen operation is simple and convenient;
2. Pressure & Vacuum thermoforming;
3. Up & Down mould forming style;
4. Sheet servo feeding, length stepless adjusting, high speed, accuracy, stability;
5. The opening moulds and closing moulds in the stations of forming and cutting are controlled by servo motors, the plastic product is output in automatic counting;
6. Down stacking style for plastic product;
7. With memory function for product information & data 50 sets;
8. Sheet feeding caterpillar width can be synchronized or separate electric adjusted.

Product Parameter
No. Model JD82
1 Applicable Sheet Width (mm) 500-860
2 Applicable Sheet Thickness (mm) 0.2-2
3 MAX Sheet Winding Diameter (mm) 800
4 Forming Mould Stroke (mm) 2 x 170
5 Power 60-80KW/H
6 MAX Forming Area (mm²) 820 x 650
7 Forming Mould Width (mm) 500-820
8 MAX Forming Depth (mm) 140
9 Cutting Mould Stroke (mm) 2 x 170
10 MAX Cutting Area (mm²) 820 x 650
11 Cutting Force (ton) 60
12 Machine Running Speed (cycle/min) 60
13 Product Forming Cooling water
14 Air Supply (external) Air Amount (m³/min) ≥6
Air Pressure (MPa) 0.8
15 Power 3phase 4wire 380V50Hz
16 Electric Furnace Heating Power (kw) 170
17 MAX Power (kw) 220
18 Exterior Size (L x W x H) (mm) 14040 x 2400 x 3100
19 Machine Weight (T) ≈16

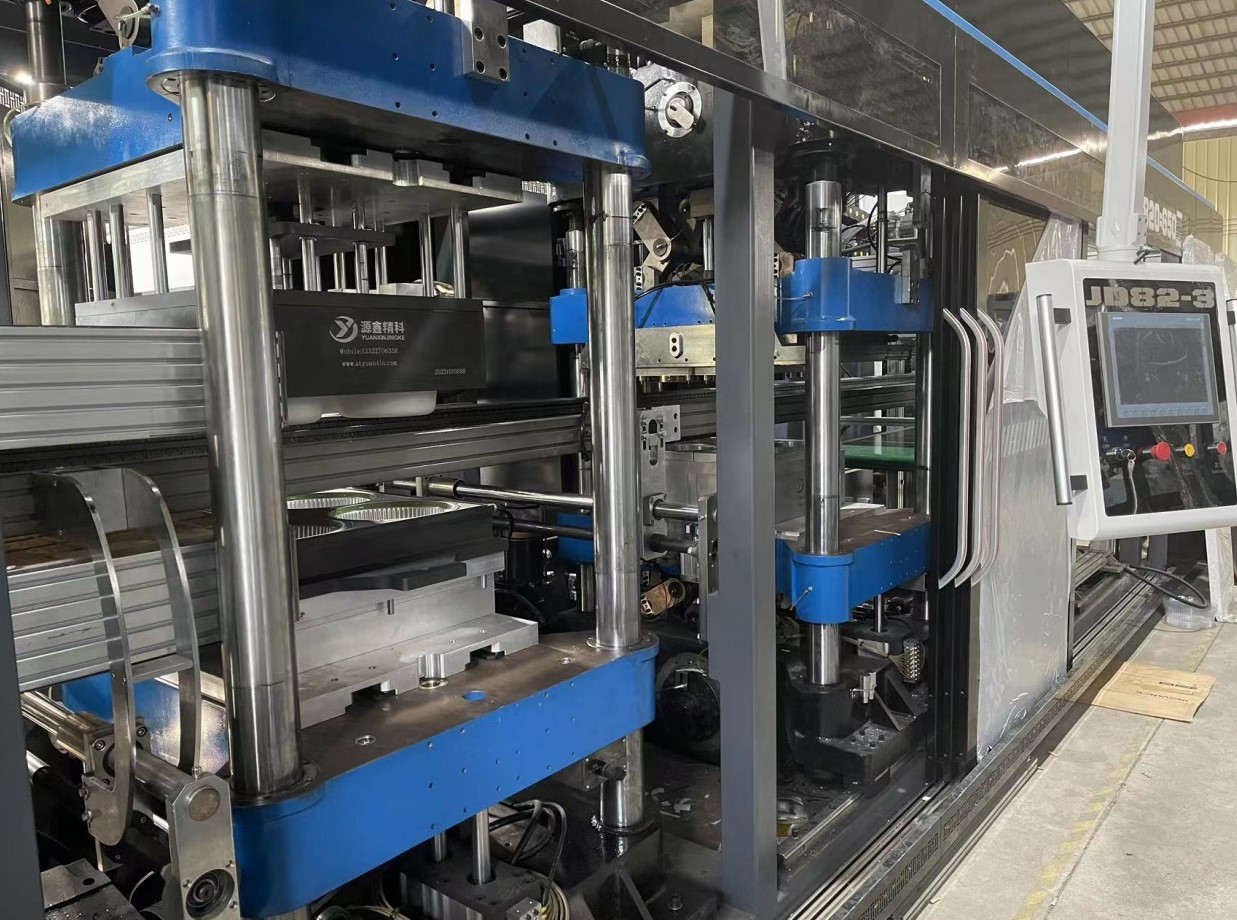

Detail Images:
