Home /3&4 Station Thermoforming Machine /

JF760-850 Vacuum Three Station Plastic Cake Bread Cookie Box Making Machine

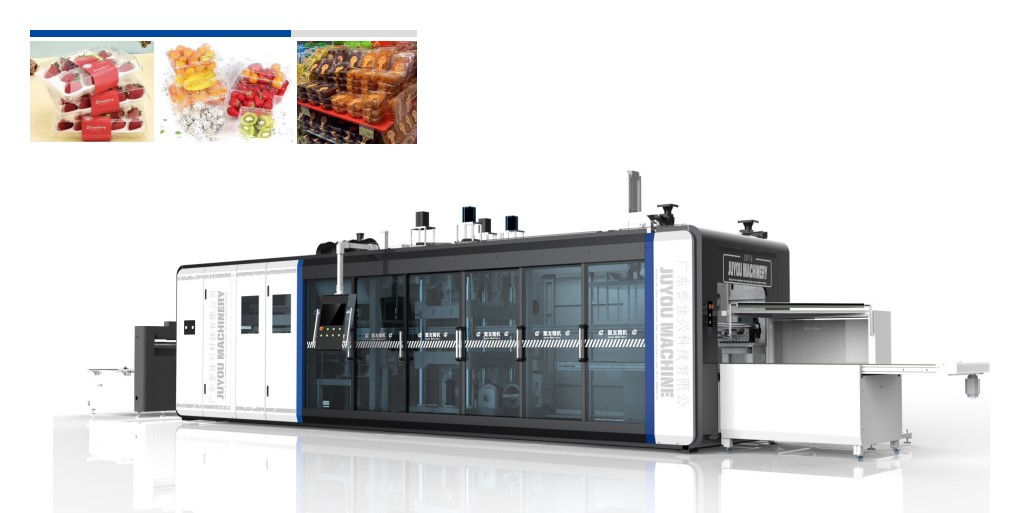

JF760-850 Vacuum Three Station Plastic Cake Bread Cookie Box Making Machine

JF760-850 Vacuum Three Station Plastic Cake Bread Cookie Box Making Machine is suitable for producing plastic tableware, fast food box such as tray, lunch box, bowl, lid, cover, jelly cup, especially for containers in many varieties but few quantities because of cheap moulds. This machine have three stations: Thermoforming station →Punching & Cutting station →Product stacking station. Its forming area is 760x850mm, forming depth 120mm, production speed 20 cycle/min. It is mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with negative vacuum pressure forming to become different kinds of containers.

  • Processing Type :

    JF76 Vacuum Three Station Thermoforming Machine Plastic Cake Bread Cookie Box Making Machine
  • Plastic Type :

    APET, PP, PS, BOPS, PVC, PLA
  • Production Speed :

    ≤20 Cycle/Min
  • Brand Name :

    Yujiaxing
  • Voltage :

    380V/50Hz (Three phase four wire)
  • Dimension :

    14150x2300x2400 mm
  • Power :

    ≈ 50 Kw
JF760-850 Vacuum Three Station Plastic Cake Bread Cookie Box Making Machine

JF760-850 Vacuum Three Station Plastic Cake Bread Cookie Box Making Machine is suitable for producing plastic tableware, fast food box such as tray, lunch box, bowl, lid, cover, jelly cup, especially for containers in many varieties but few quantities because of cheap moulds. This machine have three stations: Thermoforming station →Punching & Cutting station →Product stacking station. Its forming area is 760x850mm, forming depth 120mm, production speed 20 cycle/min. It is mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with negative vacuum pressure forming to become different kinds of containers.

Product Specifications:
NO. Description Parameters
1 Suitable Material APET, PP, PS, BOPS, PVC, PLA
2 Sheet Width 450-800 mm
3 Sheet Thickness 0.2-1.2 mm
4 Sheet Roll Diameter ≤800 mm
5 Forming Area ≤760x850 mm
6 Cutting Area ≤760x850 mm
7 Forming Mould Width 450-760 mm
8 Forming Depth ≤120 mm
9 Forming Mould Stroke Up 500mm, Down 300mm
10 Cutting Mould Stroke Up 250mm, Down 150mm
11 Production Speed ≤20 cycle/min
12 Power Supply 380V/50Hz (Three phase four wire)
13 Heating Power ≤115 Kw
14 Total Power ≤145 Kw
15 Average Running Power ≈50 Kw
16 Product Cooling Method water cooling
17 Vacuum Pump UniverstarXD160
18 Air Consumption ≥2m³/min
19 Air Pressure 0.6 Mpa
20 Dimension (LxWxH) 14150x2300x2400 mm
21 Machine Total Weight ≈11 Ton

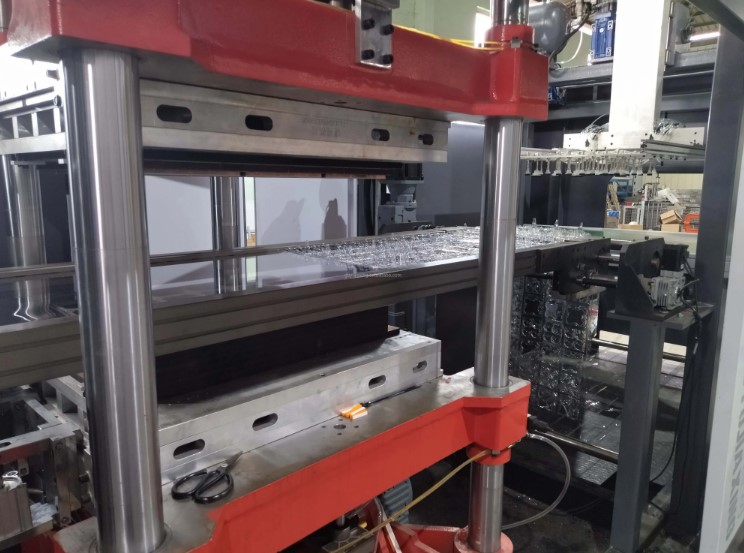

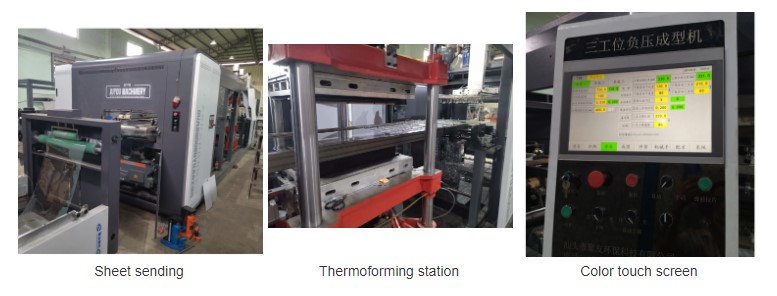

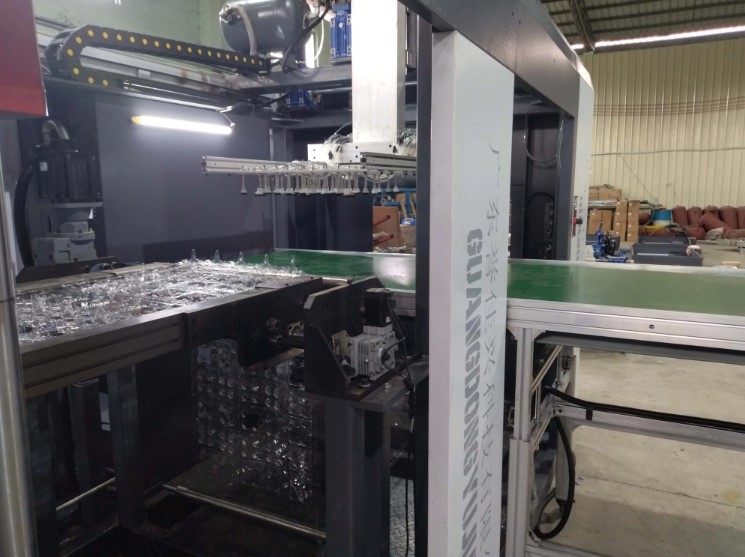

Detail Images:
