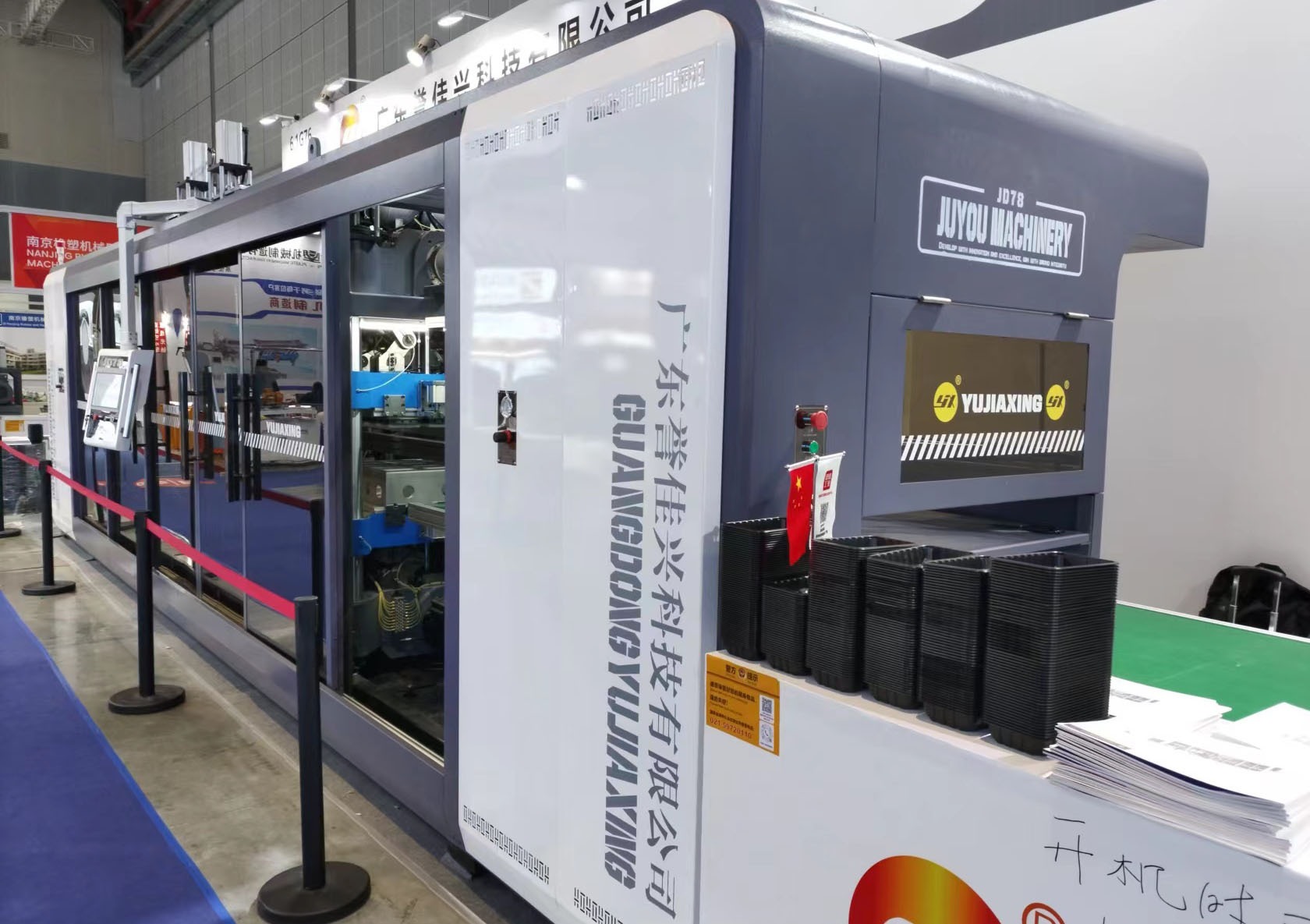

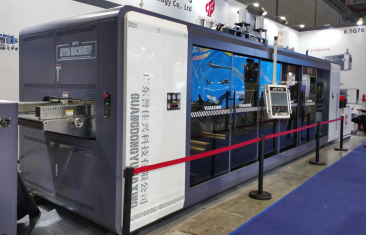

JD780-600 Pressure And Vacuum Three Station Plastic Box Thermoforming Machine

JD780-600 Pressure And Vacuum Three Station Plastic Box Thermoforming Machine

JD780-600 Pressure And Vacuum Three Station Plastic Box Thermoforming Machine is suitable for producing disposable plastic box, food container, lunch box, tray, plate etc. It has three stations: Forming - Cutting - Stacking. Its forming area is 780X600mm, forming depth 120mm, Max speed 60cycle/min. It is mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with vacuum & positive pressure forming to become different kinds of containers.

  • Processing Type :

    JD760-600 Pressure And Vacuum 3 Station Plastic Food Container Thermoforming Machine
  • Plastic Type :

    APET, PP, PS, BOPS, PVC, PLA
  • Production Speed :

    60 cycle/min
  • Brand Name :

    Yujiaxing
  • Voltage :

    380V/50Hz (Three phase four wire)
  • Dimension :

    13000x2500x3000 mm
  • Power :

    ≈ 70 Kw
JD780-600 Pressure And Vacuum 3 Station Plastic Box Thermoforming Machine

JD780-600 Three Station Disposable Plastic Box Thermoforming Machine is suitable for producing disposable plastic box, food container, lunch box, tray, plate etc. It has three stations, forming, cutting and stacking. Its forming area is 780X600mm, forming depth 120mm, speed 60cycle/min. It is mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Touch screen operation is simple and convenient.The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with vacuum & positive pressure forming to become different kinds of containers.

1. Mechanical, pneumatic, electrical integration. Each action program is controlled by PLC. Color touch screen operation is simple and convenient;
2. Pressure & Vacuum thermoforming;
3. Up & Down mould forming style;
4. Sheet servo feeding, length stepless adjusting, high speed, accuracy, stability;
5. The opening moulds and closing moulds in the stations of forming and cutting are controlled by servo motors, the plastic product is output in automatic counting;
6. Down stacking style for plastic product;
7. With memory function for product information & data 50 sets;
8. Sheet feeding caterpillar width can be synchronized or separate electric adjusted.

Product Parameter
NO. Descriptions Parameters
1 Suitable Material APET, PP, PS, BOPS, PVC, PLA
2 Sheet Width 450-800mm
3 Sheet Thickness 0.2-1.5mm
4 Max Sheet Roll Diameter 800mm
5 Max Forming Area 780x600 mm
6 Max Cutting Area 780x600 mm
7 Forming Mould Width 450-780 mm
8 Max Forming Depth 140 mm
9 Forming Mould Stroke Up 170mm, Down 170mm
10 Cutting Mould Stroke Up 170mm, Down 170mm
11 Max Production Speed 60 cycle/min
12 Power Supply 380V/50Hz (Three phase four wire)
13 Max Heating Power 168 Kw
14 Max Total Power 208 Kw
15 Average Running Power ≈70 Kw
16 Product Cooling Method Water Cooling
17 Vacuum Pump UniverstarXD160
18 Air Consumption ≥2m³/min
19 Air Pressure 0.8 Mpa
20 Dimension (LxWxH) 13000x2500x3000 mm
21 Machine Total Weight ≈16Ton



Detail Images:
