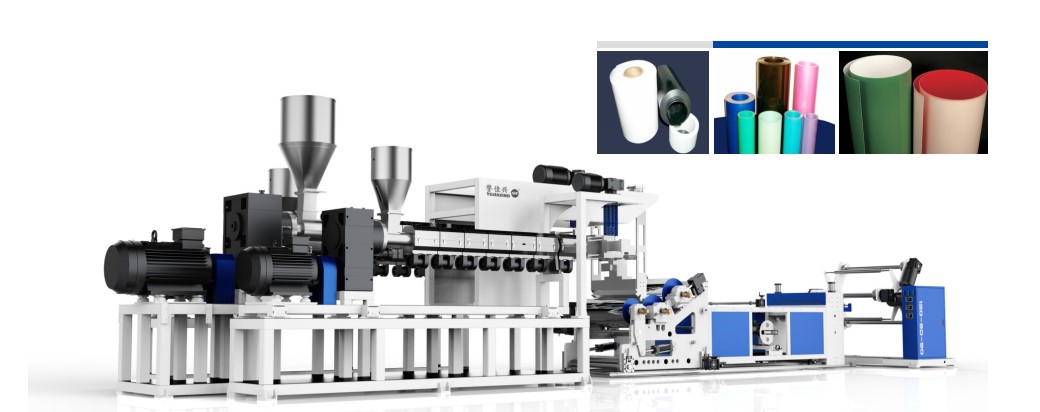

JNW120/75-1000 Horizontal three-layer ABA co-extrusion PP/PS sheet extruder

JNW120/75-1000 Horizontal three-layer ABA co-extrusion PP/PS sheet extruder

JNW120/75-1000 Horizontal three-layer ABA co-extrusion PP/PS sheet extruder is equipped with many sets of extruder and the metering pump, the extrusion stability, accurate. PP/PS sheet by hot forming, and other forms of secondary processing can be made into all kinds of plastic products, mainly used for packing food, medicine, medical apparatus and instruments, etc. We specifically for volume/screw speed than data optimization, greatly enhance melt extrusion production and material performance.

  • Processing Type :

    JNW120/75-1000 Horizontal three-layer ABA co-extrusion PP/PS sheet extruder
  • Plastic Type :

    PE, PP, EPS, HDPE/PP, LDPE
  • Production Speed :

    450-550kg/h
  • Brand Name :

    Yujiaxing
  • Voltage :

    380V 50HZ
  • Dimension :

    18150*2300*2400mm
  • Power :

    132kw
JNW120/75-1000 Horizontal three-layer ABA co-extrusion PP/PS sheet extruder

JNW120/75-1000 Horizontal Multilayer Three-layer ABA co-extrusion PP/PS sheet extruder is mainly used for packaging of blister, thermoforming industry fields. PP/PS/PE sheet thermoforming by second-process to make various product, mainly used in food, medicine, medical equipment. The sheet thickness is 0.3-2.0mm, sheet width 390-820, output 500-750kg/h. We are specifically do the data optimization for speed ratio of volume and screw, substantially increased extruding output and material melting performance.

FEATURES AT A GLANCE
1. Keep good material's mixing effect and plastify quality, can maximum improve the finished product quality, reduce the processing defect.
2. Modular design, compact structure, easy operation, simple maintenance.
3. Can realize online crushing rim, automatic wrapping roll and winding, improve product quality, reduce cost.
4. With advanced electronic software system, parameter setting, data calculation, alarming automatic function, greatly improved operator safety and labor strength.

PRODUCT PARAMETER
NO. Description Specification
1 Screw Diameter ∅120/75 mm
2 Suitable Material PP, PS, PE
3 Sheet Layer A/B/A
4 Tolerance Thickness ±0.01mm
5 Sheet Thickness 0.3-2.0mm
6 Sheet Width 390-820mm
7 Screw Speed ≤100rpm
8 Output 500-750kg/h
9 Power Supply 380V/50HZ, 3P+N+E
10 Main Motor 132Kw / 90Kw
11 Max Total Power ≤280Kw
12 Average Power ≈140Kw
13 PLC INOVANCE
14 Touch Screen INOVANCE 15"
15 Machine Weight ≈23 Ton
16 Dimension LxWxH 15000x6000x3700 mm

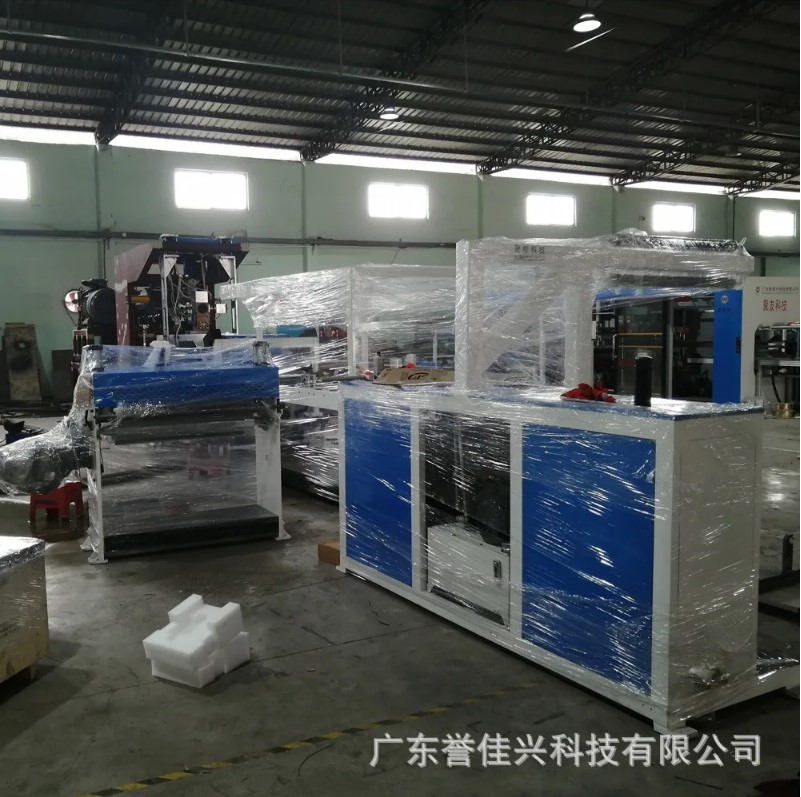

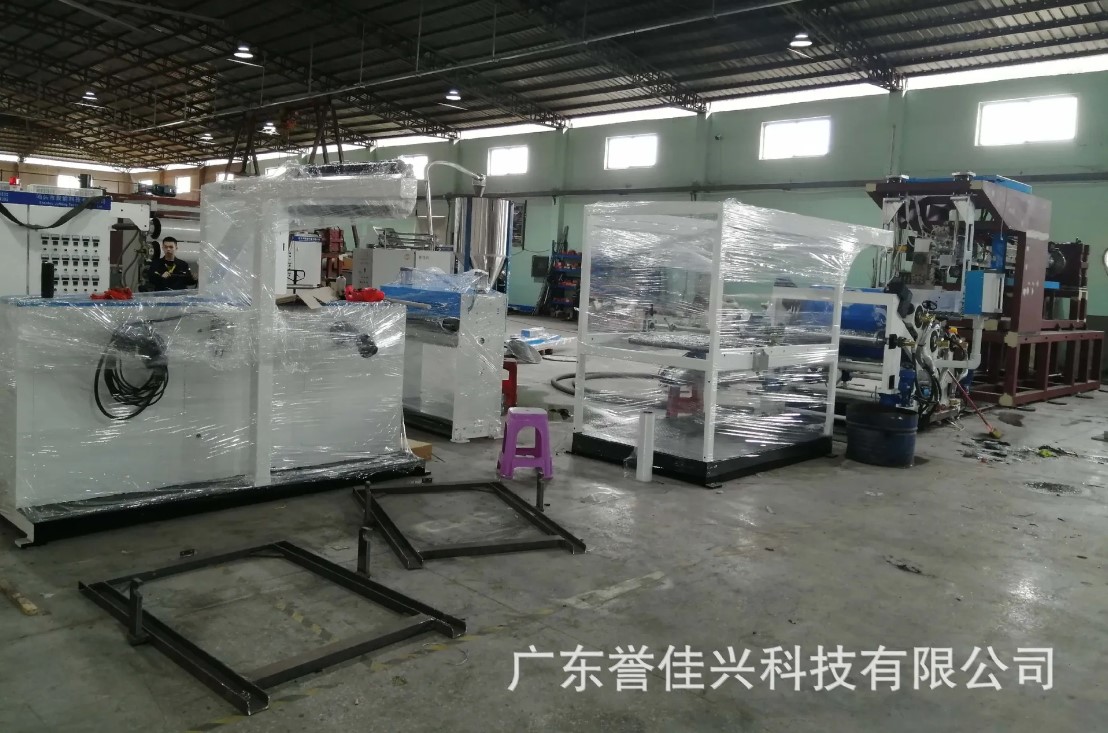

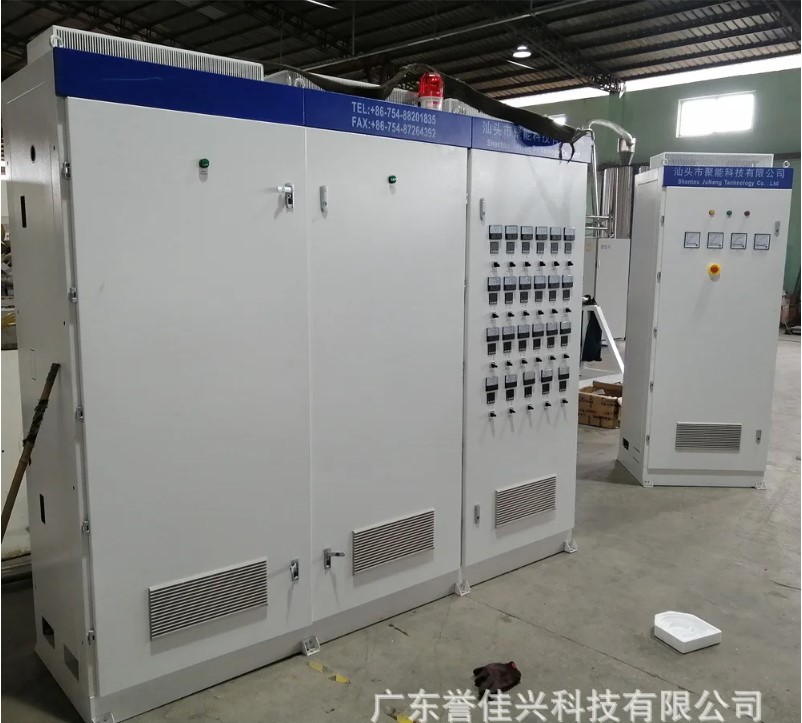

PRODUCT PICTURE:
