JY850-560 Hydraulic Disposable Plastic PP Bowl Making Machine

JY850-560 Hydraulic Disposable Plastic PP Bowl Making Machine

JY850-560 Hydraulic Disposable Plastic Cup Bowl Making Machine Thermoforming Machine is suitable for producing plastic cup bowl box containers and lids. This machine is controlled by thermoforming and hydraulic technology, with our years of machine manufacturing experience to successfully develop this new generation high efficiency and energy saving machine. The whole machine is controlled by PLC and Servo system (Equipped with a stretching servo motor), the positioning is more accurate and the thermoforming is more stable. The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with positive pressure forming to become different kinds of jelly cups, beverage cups, packaging boxes high grade containers, and so on. The forming area is 850 x 560mm, forming depth 180mm, max production speed 35 cycle/min.

  • Processing Type :

    JY850-560 Hydraulic Disposable Plastic Cup PP Bowl Making Machine
  • Plastic Type :

    PET/PP/PS/PVC/PLA
  • Production Speed :

    ≤35 Cycle/Min
  • Brand Name :

    Yujiaxing
  • Voltage :

    380V/50Hz (Three phase four wire
  • Dimension :

    550×200×280 cm
  • Power :

    ≈ 55 Kw



JY850-560 Hydraulic Disposable Plastic Tea Cup Making Machine

Functional Features:
JY850-560 Hydraulic Disposable Plastic Tea Cup Making Machine is suitable for producing plastic cup bowl box containers and lids. This machine is controlled by thermoforming and hydraulic technology, with our years of machine manufacturing experience to successfully develop this new generation high efficiency and energy saving machine. The whole machine is controlled by PLC and Servo system (Equipped with a stretching servo motor), the positioning is more accurate and the thermoforming is more stable. The machine has the advantages of stable operation, low noise, energy saving and environmental protection, high grade of finished products. This machine is mainly used in production of PP PS PE PET HIPS PLA thermoplastic sheet with positive pressure forming to become different kinds of jelly cups, beverage cups, packaging boxes high grade containers, and so on. The forming area is 750 x 520mm, forming depth 180mm, max production speed 35 cycle/min.

Product Specifications:
NO. Description Parameter
1 Max. Forming Area 750 x 520 mm
2 Max. Cutting Area 750 x 520 mm
3 Max. Forming Depth ≤180 mm
4 Sheet Thickness 0.2-2 mm
5 Suitable Material PP PS PE PET HIPS PLA starch material
6 Production Speed 10-35 cycle/min
7 Power Supply 380V/50Hz/3P Three Phase Four Wire
8 Air Pressure 0.6-0.8 Mpa
9 Max Air Consumption 2200 L/Min
10 Max Water Consumption 20M³/H
11 Water Supply 50M³/H
12 Main Motor Power 15 Kw
13 Average Power ≈60 Kw
14 Machine Weight ≈11 Ton
15 Machine Dimension ≈7340x2800x3000 mm (L x W x H mm)

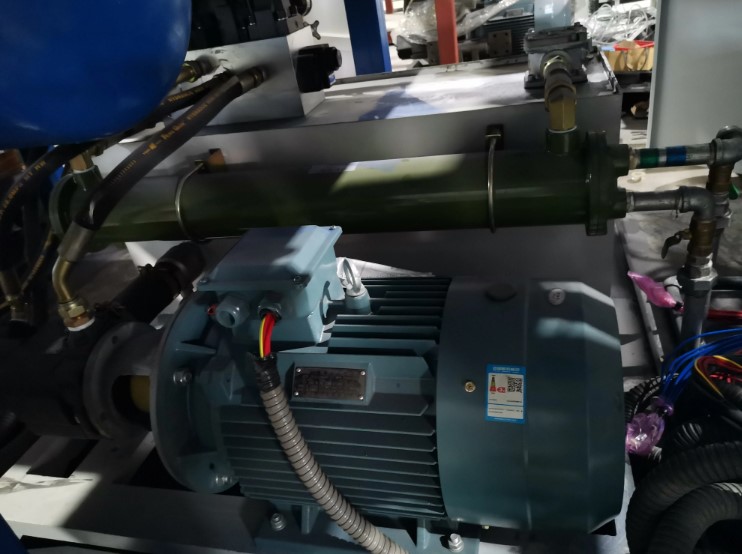

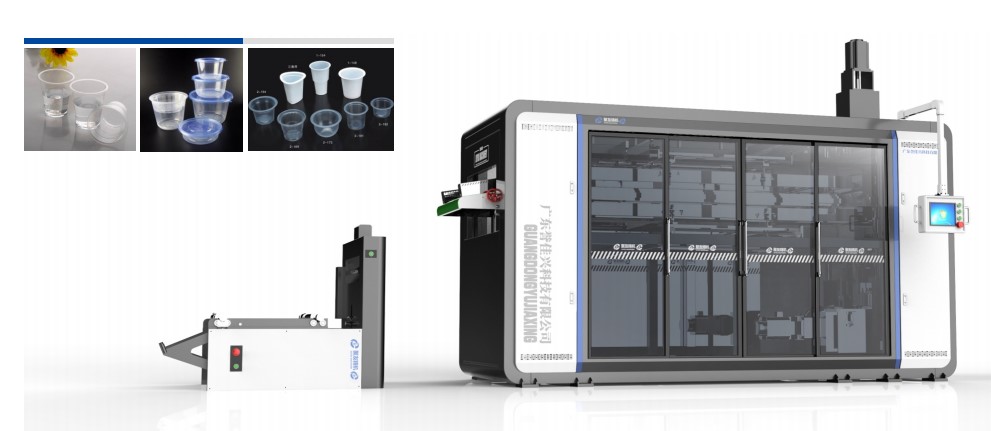

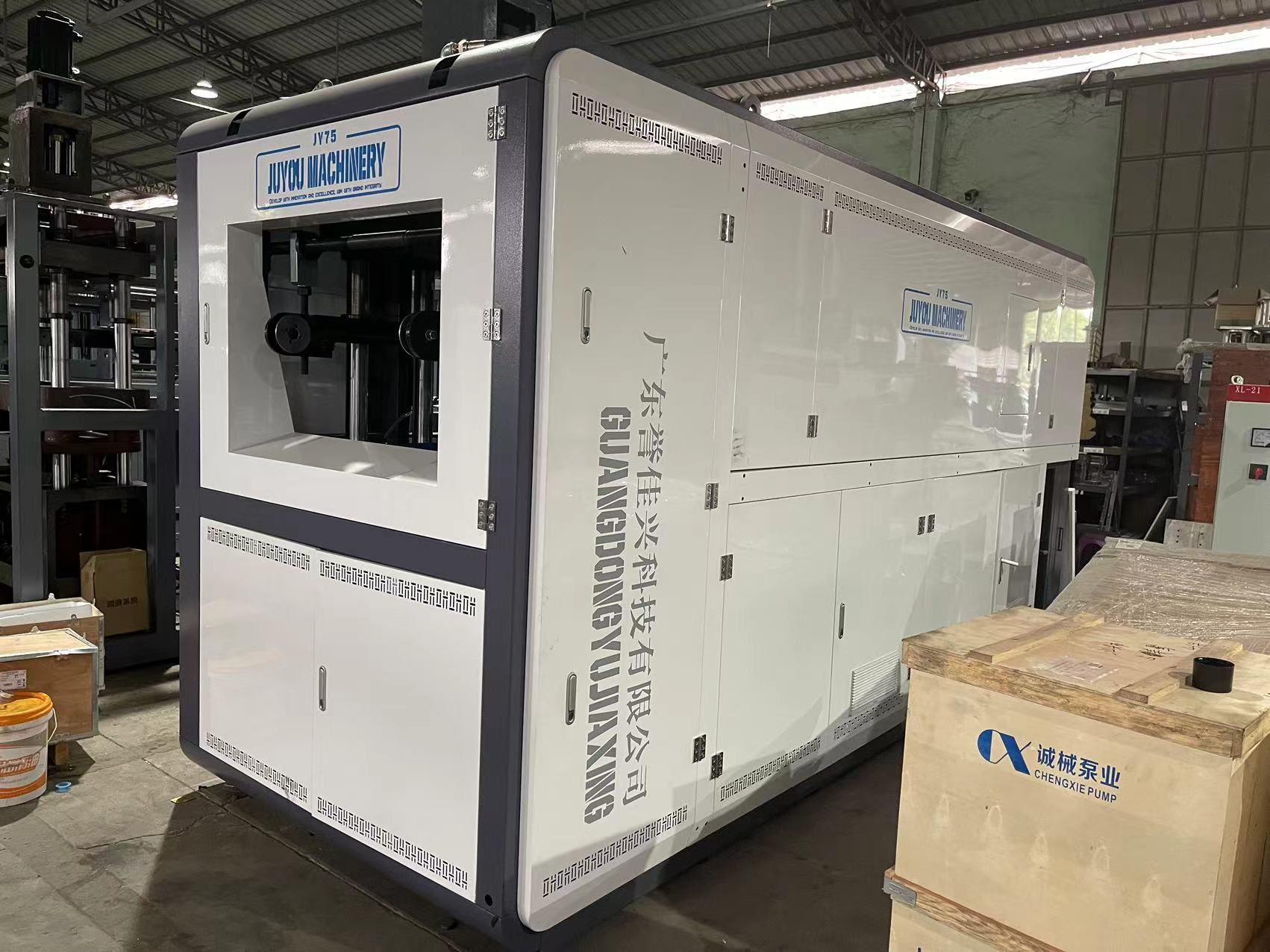

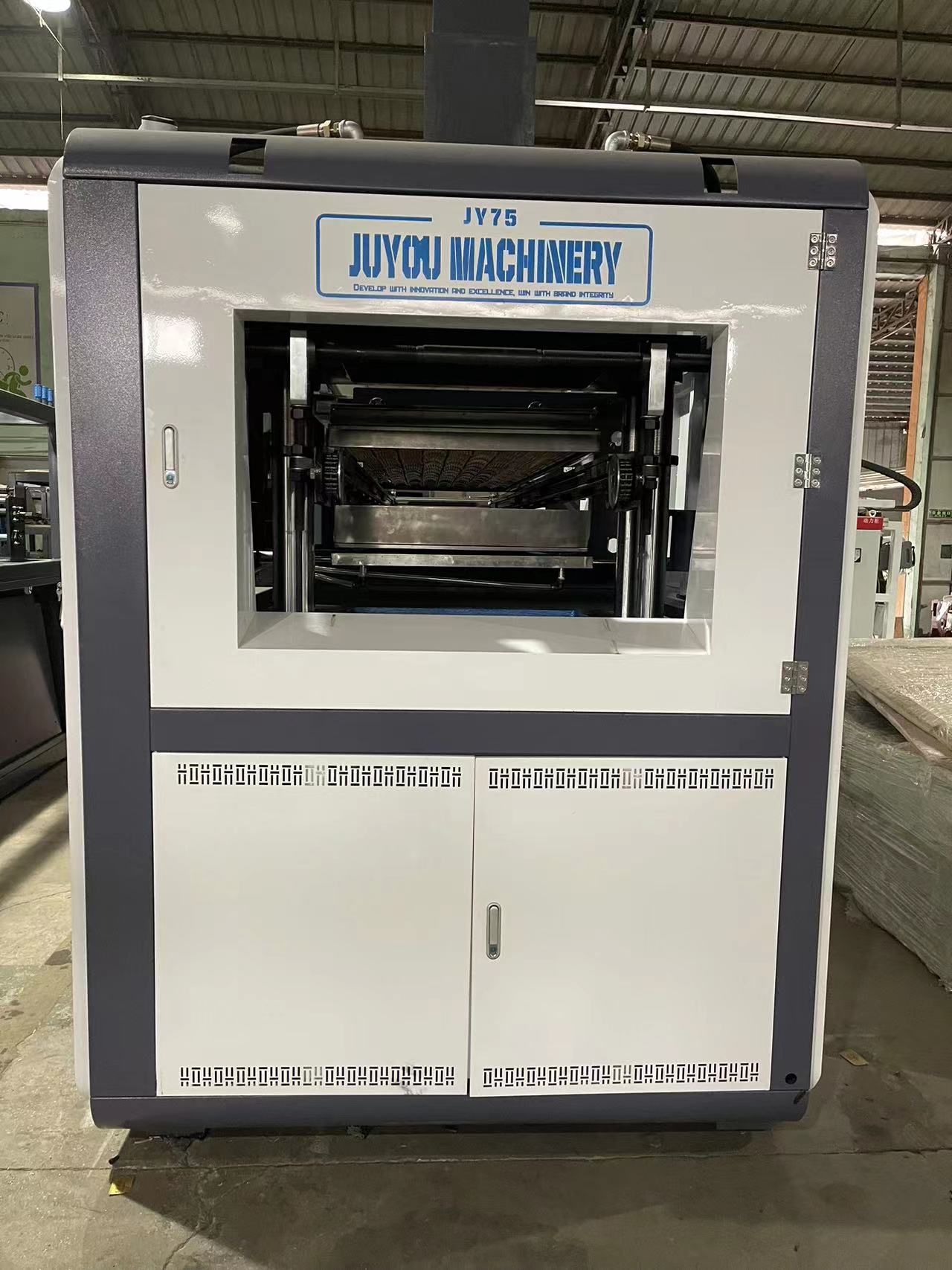

Detail Images:
